Name: Biometric Scanner with Palm Vein Recognition Multi-System Supporting Palm-Reading Module SDK for Access Control Products
Brand: Shenzhen Tendcent Technology Co., Ltd.
Availability: InStock

Home Products Monocular Palm Vein Camera Module

Biometric Scanner with Palm Vein Recognition Multi-System Supporting Palm-Reading Module SDK for Access Control Products

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	OEM

Contact Now

Detailed Product Description

Operation System:	Windows, Android, Linux, Mac Os Xx	Special Features:	Other, Palm Vien Reader
Customized Support:	Online Technical Support, Software Reengineering	Display Type:	Other
Storage:	Cloud	Power Source Type:	USB Powered
Operating System:	Android, Windows,Linux,MAC OS	Camera:	RGB/IR
Communication Interface:	USB TypeC(USB2.0 Agreement)	Palm Capacity:	20,000
Palm Working Distance:	5~15cm	QR Code Scanning:	3~20cm,Supports For Simple QR Code
ESD Level:	Contact Discharget4KV, Air Discharge+8KV	Algorithm Deployment Method:	Support For Local Deployment And Cloud Deployment
Cloud Library Capacity:	Support Half A Million,1/2/..5million,depends On Server Capacity	Illuminance:	0~50,000Lux(Module Not Exposed To Direct Sunlight)

Specification

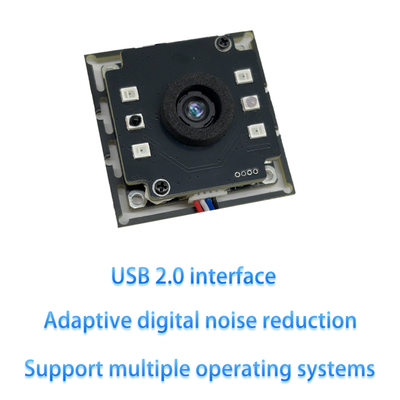

Features
Support multiple encodings
Operation System
Support UVC (driver-free protocol)
Support multiple operating systems
Adaptive digital noise reduction
Support maximum resolution of 1920x1080

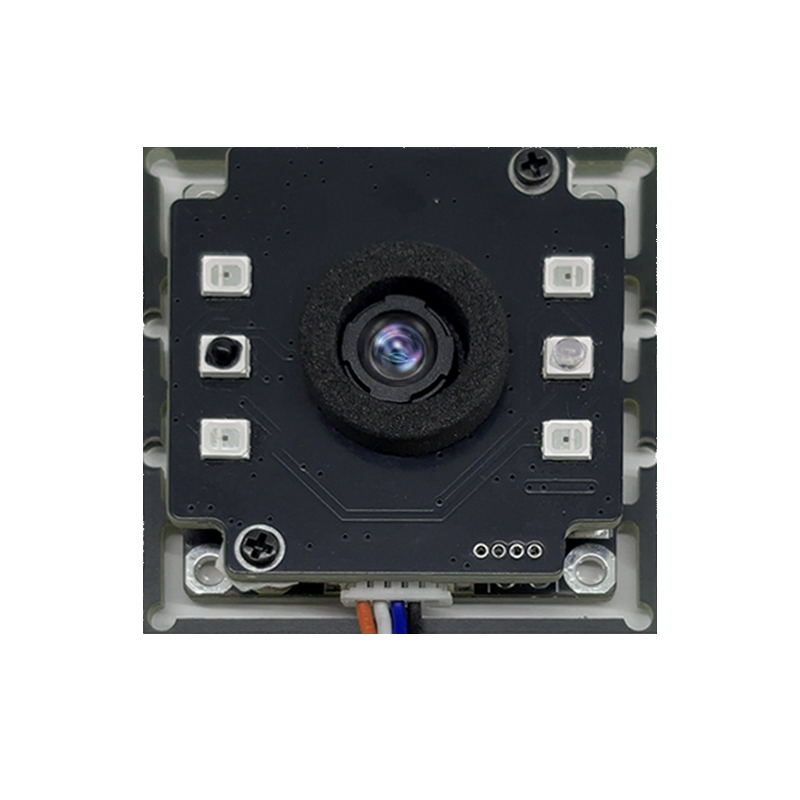

Camera Module Key Parameters

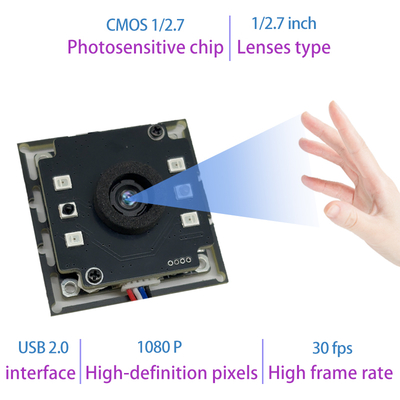

Sensor	1/2.9-Inch CMOSSensor
Resolution	1920 H x 1080 V
Pixel Size	2.8*2.8µm
Dynamic Range	NC
Output Format	MJPEG,YUV2
FOV	DFOV:92°
Lens	FEL:3.2mmF/NO:2.4
Scanning Speed	0.1S
Focus Type	FF/ MF
Shutter Type	Electronic Rolling shutter
Output and Power Supply	High Speed UsB2.0
Interface	5 PIN 1.0 MM Socket
Controllable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White Balance, Backlight Contrast, Exposure
Supported OS	Windows, Android, Linux, Wince, Mac OS
Cable Length	TBD
MIC	NC
Operating Voltage	USB DC +5V Supply
Operating Current	<200 mA
Operating Temperature	-20℃~60℃
Storage Temperature	-20℃~85℃

Product Description

Company Profile

FAQ

1. who are we?
We are based in Guangdong, China, start from 2012,sell to North America(20.00%),South America(20.00%),Eastern Europe(20.00%),Domestic Market(10.00%),Southeast Asia(5.00%),Oceania(5.00%),Mid East(5.00%),Western Europe(5.00%),Northern Europe(5.00%),Southern Europe(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Face recognition access control and attendance machine,Industrial computer,Face recognition alcohol detection machine,Palm vein recognition,Advertising display screen

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
