Name: Customizable Android 11 Face Recognition Attendance Machine Liveness Detection OEM ODM Support WiFi Network Biometric
Brand: Shenzhen Tendcent Technology Co., Ltd.
Availability: InStock

Home Products 7-inch face recognition

Customizable Android 11 Face Recognition Attendance Machine Liveness Detection OEM ODM Support WiFi Network Biometric

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Tendcent

Contact Now

Detailed Product Description

Operation System:	Android 11	Special Features:	One-way Audio, People Counting, Temperature Measurement
Customized Support:	Software Reengineering, Customized Logo, Online Technical Support, OEM, ODM	Display Type:	LCD Screen
Storage:	Cloud	Power Source Type:	Dc Power Supply
Product Name:	Face Recognition Access Control	Communication:	TCP IP,RS232/485,WG26/34,Ethernet,Wi-Fi,Wiegand,USB,RJ45,4G 0ptional
Function:	Face Recognition Access Control Attandence,wiegand,ID/IC ,Door Open	Display:	7" Touch Screen
Identification Mode:	Face+Fingerprint+Password+IC Card/RFID Card(Optional),Palm(optional)	Card Type:	IC/ID Card (optional)
Resolution:	1024*600,brightness 350cd/ ㎡

Specification

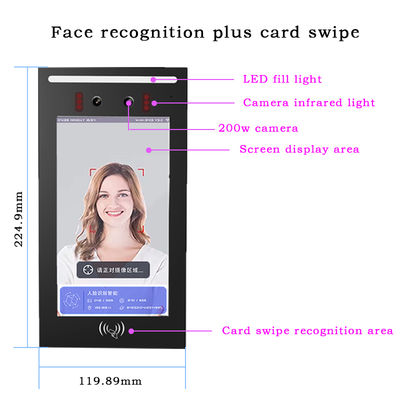

	7-Inch Android Face Recognition Access Control Attendance Machine
item	value
Size	7 inch
Special Features	People Counting, RESET, Abnormal sound detection, Alarm I/O, NIGHT VISION, Built-in Siren, one-way audio
Operation System	Android 11
Customized support	Software reengineering, Online technical support, Customized logo, OEM, ODM,
System Design
Display Type	LCD Screen,Touch Screen Resolution 1024*600
Video decoding	4K 60fps H.265/H.264/VP9 video decoding, support 1080P 100fpsH.265/H.264 video encoding H.265/H.264 video encoding, etc.
System module	Mainboard, binocular camera, display, etc.
Structural design	Titanium-aluminum alloy material, ultra-thin design
Lifespan	30,000 hours
Host System
System version	Android 11
CPU type	Quad-core 64-bit Cortex-A55, main frequency up to 2.0GHz RK356
GPU	Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded high-performance 2D acceleration hardware Storage capacity
Storage capacity	EMMC 16G (32G/64G optional)
NPU	Supports 0.8T computing power
USB	4 USB-HOST, 1 USB_OTG
Audio interface output	1 supports 2.5W/4R speakers
LAN（RJ45）	100M adaptive Ethernet
WiFi/3G/4G/Bluetooth	Support WIFI-2.4G, BT-4.1
Camera parameters
Resolution	200W pixels
Type	Binocular wide dynamic
Aperture	Aperture 2.4
Focus distance	50-150
White balance	Automatic
Fill light	LED and infrared fill light
Power parameters
Input power	Power adapter 12V/2.5A
Power consumption of the whole machine	≤13.5W
Standby power consumption	≤1W
Audio output power	4Ω 3W
Storage	Memory Card
Power source type	dc power supply
Place of Origin	China，Guangdong
Brand Name	Tendcent

Product Description
